Specifications
| Type | Shotgun microphone |
|---|---|
| Polar pattern | Omnidirectional, front, rear |
| Frequency response | 40–20,000 Hz (PURE), 90–20,000 Hz (FOCUS) |
| Sampling frequency/bit length | 48 kHz/24 bit, 48 kHz/32-bit float (when attached to ZR) |
| Power supply | Supplied by the camera |
| Dimensions (W × H × D) | Approx. 34 × 58.5 × 73 mm/1.4 × 2.4 × 2.9 in. |
| Weight | Approx. 86 g/3.1 oz (body only) |
| Operating temperature | −10 °C–40 °C (+14 °F–104 °F) |
| Supplied accessories | Wind muff, Soft case, Digital accessory foot cover |
- Unless otherwise stated, specifications are independent of any device to which the microphone may be connected.
- Nikon reserves the right to change the appearance, specifications, and performance of the product described in this document at any time and without prior notice. Nikon will not be held liable for damages that may result from any mistakes that this document may contain.
Audio Characteristics
Frequency responses and polar patterns vary according to microphone mode and pickup pattern settings.
Microphone Mode: PURE, Pickup Pattern: FRONT (Front)

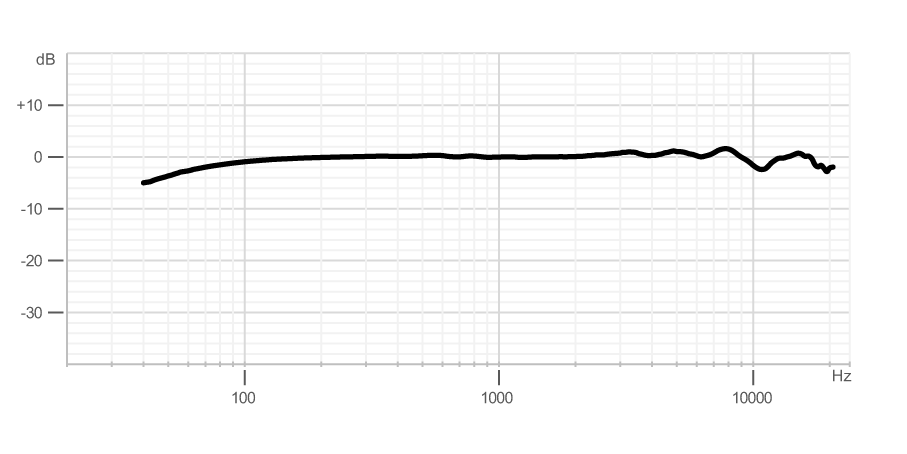

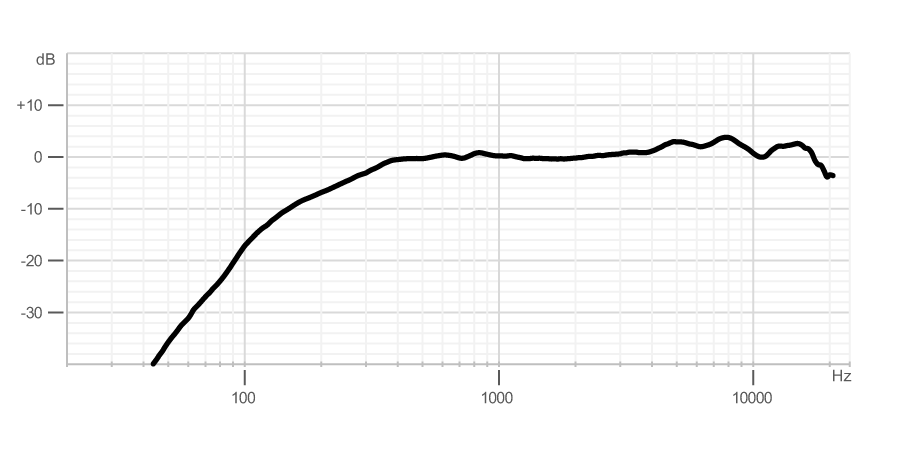

- Frequency response:

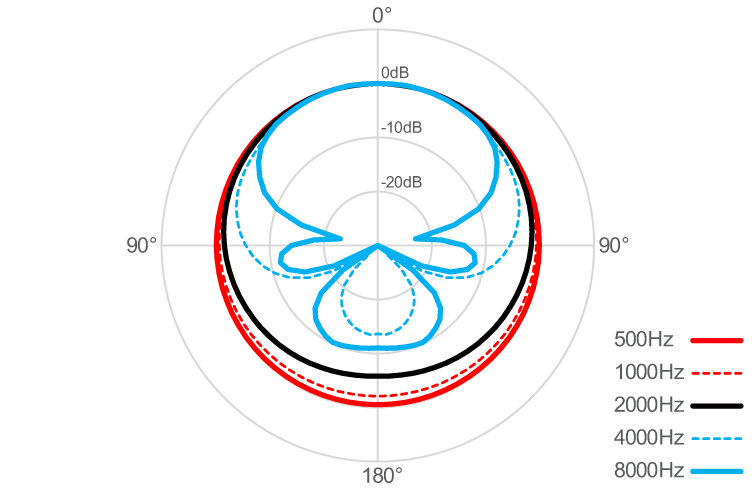

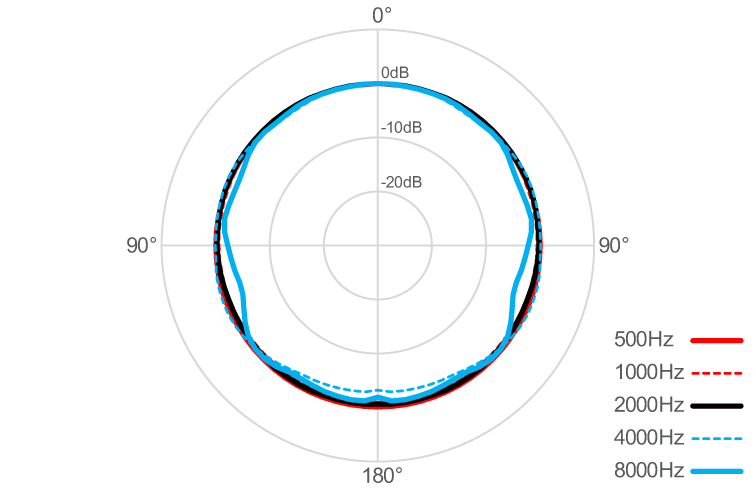

- Polar pattern:
Microphone Mode: PURE, Pickup Pattern: ALL (Omnidirectional)

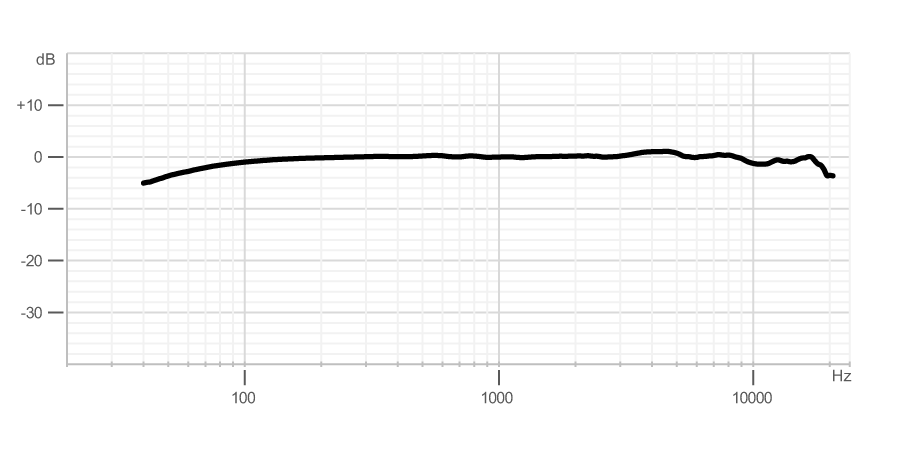

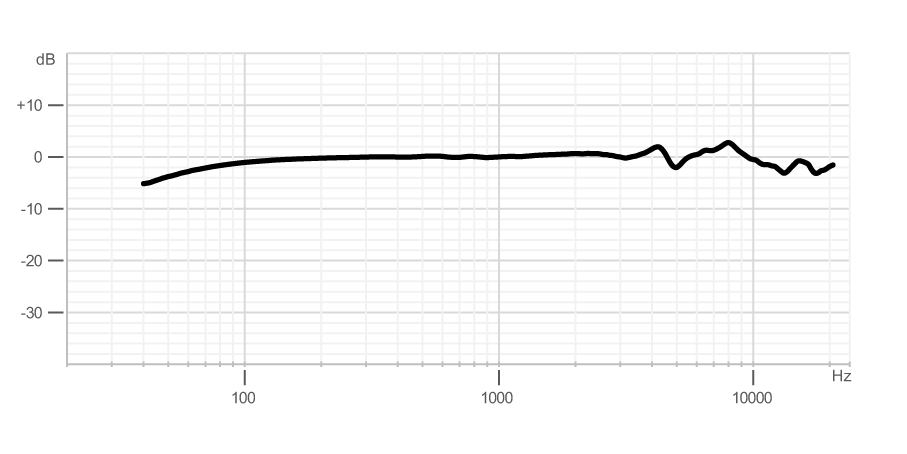

- Frequency response:
- Polar pattern:
Microphone Mode: PURE, Pickup Pattern: REAR (Rear)
- Frequency response:

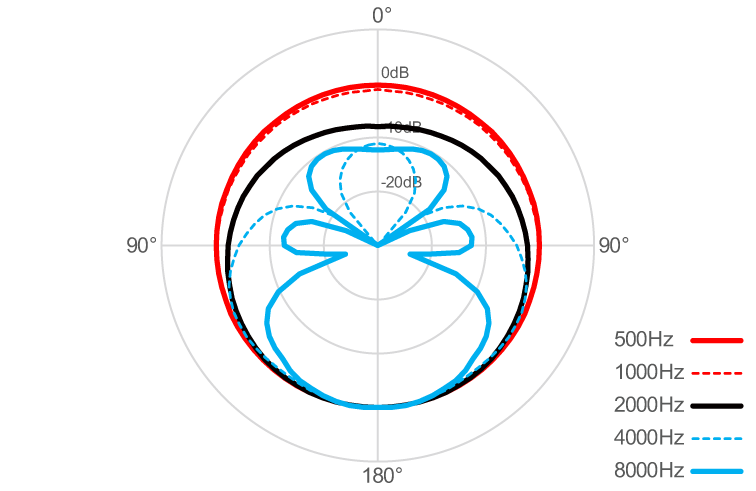

- Polar pattern:
Microphone Mode: FOCUS, Pickup Pattern: FRONT (Front)

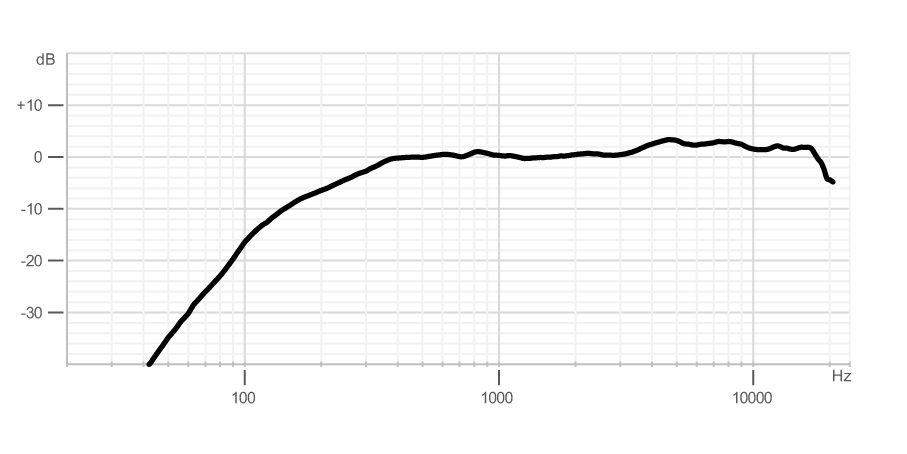

- Frequency response:

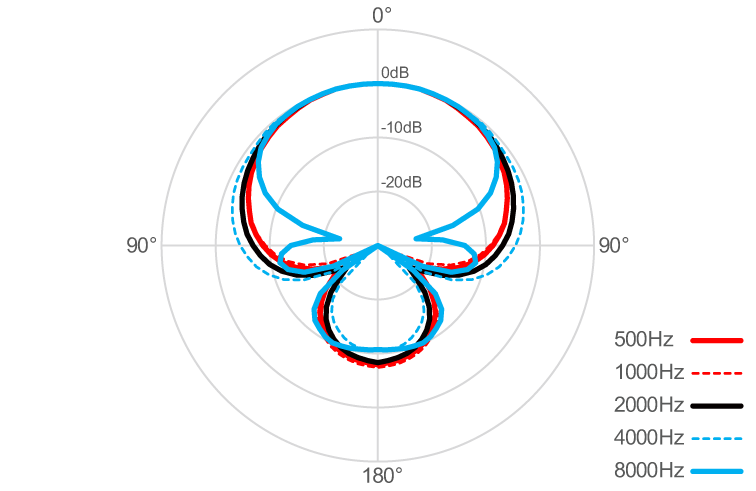

- Polar pattern:
Microphone Mode: FOCUS, Pickup Pattern: ALL (Omnidirectional)
- Frequency response:
- Polar pattern:
Microphone Mode: FOCUS, Pickup Pattern: REAR (Rear)

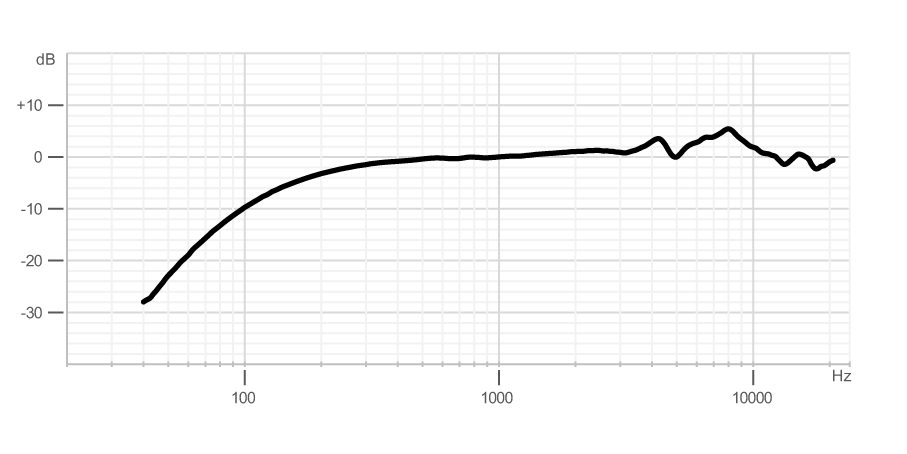

- Frequency response:

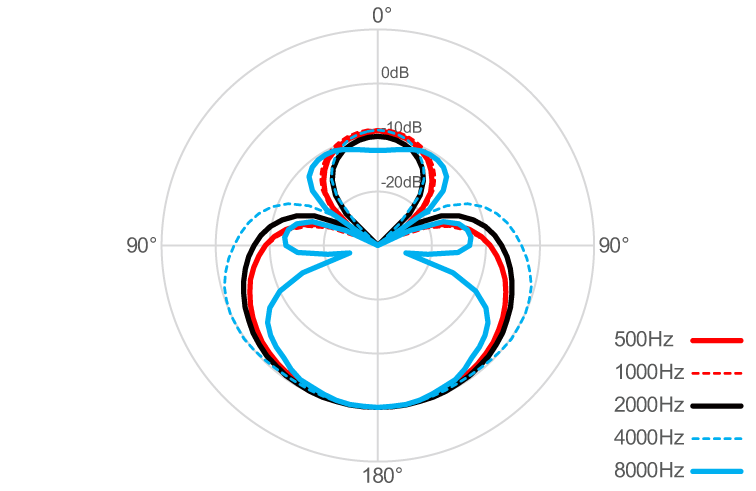

- Polar pattern:
