New Custom Setting: a16 “Focus Limiter Setting”

A [Focus limiter setting] item has been added to the Custom Settings menu at position a16. You can now limit the camera focus to the selected range.

Option	Description
[Focus limiter]	Select [ON] to limit the camera focus to the range selected with [Limit range]. The shooting display shows a focus limit icon when [ON] is selected.
[Limit range]	Specify the camera focus range. Select [Nearest] for the minimum distance and [Farthest] for the maximum distance. Set the distance values between 0.1 and 999 m.

Option

Description

[Focus limiter]

Select [ON] to limit the camera focus to the range selected with [Limit range].

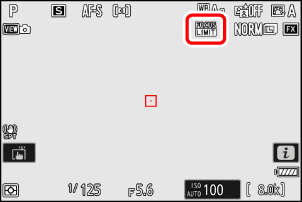

The shooting display shows a focus limit icon when [ON] is selected.

[Limit range]

Specify the camera focus range.

Select [Nearest] for the minimum distance and [Farthest] for the maximum distance.
Set the distance values between 0.1 and 999 m.

Limiting the Focus Range

Select the near and far limits of the camera focus range.

Highlight [Limit range] and press 2.

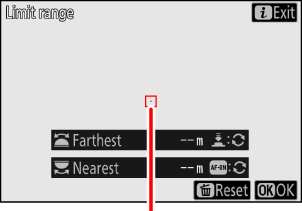

- The range setting display will appear.
- A focus-point target will appear in the range setting display.
Focus-point target
Select the minimum and maximum focus distances.

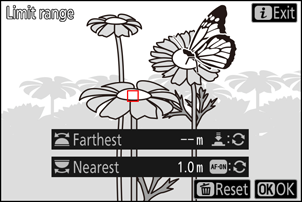

- Place the focus point over a subject at the nearest distance and press the AF-ON button to set the minimum distance. Rotate the main command dial or keep the AF-ON button pressed while rotating the lens focus ring to fine-tune the minimum distance.

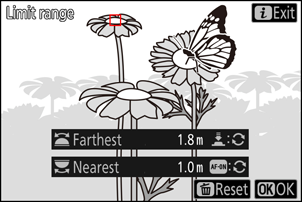

- Place the focus point over a subject at the farthest distance and press the shutter-release button halfway to set the maximum distance. Rotate the sub-command dial or keep the shutter-release button pressed halfway while rotating the lens focus ring to fine-tune the maximum distance.

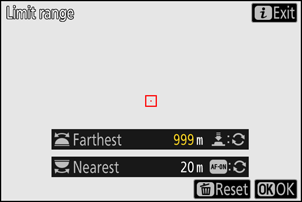

Supported Distances for “Nearest” and “Farthest”

We recommend that you configure [Nearest] and [Farthest] within the range of values indicated by the numbers in white. Setting these options to values indicated in yellow may reduce how accurately the camera can detect the distance to the subject.
Press J.

End range setting and return to the shooting display.

Caution: Changing Lenses

Changing from the lens used to set [Limit range] to another lens disables the set focus range.

Reset the [Limit range] setting to use the focus limiter function with the new lens.
If the [Limit range] setting is not reset with the new lens, re-attaching the original lens allows focusing within the set focus range.

Using Lenses with the Focus Limit Switch

When using a lens with a focus limit switch for the [Limit range] setting, set the lens focus limit switch to FULL.

Resetting the Focus Range

Press the O (Q) button to reset the values set for [Nearest] and [Farthest].
