New Video Playback i Menu Item: “Loop Playback”

We have added a [Loop playback] item to the video playback i menu displayed while playback is paused. Repeat a specified section of footage by selecting the start and end points in the video.

1. Display a video full frame.

2. Pause the video on the desired opening frame.

   • Press J to start playback. Press 3 to pause.
   • Your approximate position in the video can be ascertained from the video progress bar.
   • Rotate the sub-command dial one stop to skip ahead or back 10 s.
   • Rotate the main command dial one stop to skip ahead or back 10 frames.
   • Press 4 or 2 to advance or rewind one frame at a time.

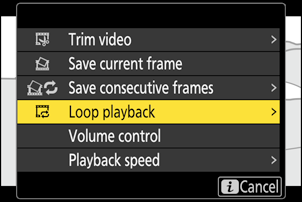

3. Press the i button, highlight [Loop playback] and press 2.

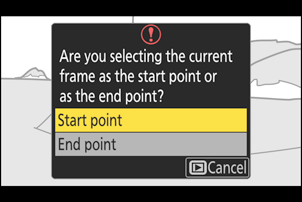

4. Choose [Start point].

   To set a loop that begins with the current frame, highlight [Start point] and press J.



5. Choose the end point of the loop.

   • Press the center of the sub-selector to switch to the end-point selection tool (x).
   • Use the command dials to select the desired closing frame of the loop.
     • Rotate the sub-command dial one stop to skip ahead or back 10 s.
     • Rotate the main command dial one stop to skip ahead or back 10 frames.
     • Press 4 or 2 to advance or rewind one frame at a time.



6. Press 1 to set the loop.

   • The camera will initiate loop playback.
   • Press 1, highlight [Yes], and press J to end the loop playback. To create a new loop, reset the start and end points.
